Born from technology proven in World Cup DH and tuned for the demands of Trail bikes and E-MTB’s, the Trail EVO takes modulation and braking power to an entirely new level of control.

New ergonomic lever-blade, newly formulated brake pad compounds, new high-performance hydraulic oil, new 5 mm brake hose system, newly designed and CNC-machined adapters, a new selection of 2.3 rotors, newly designed oil flow inside the calipers, and a 10mm master cylinder piston lift the overall performance of the Trail EVO to this new standard of performance.

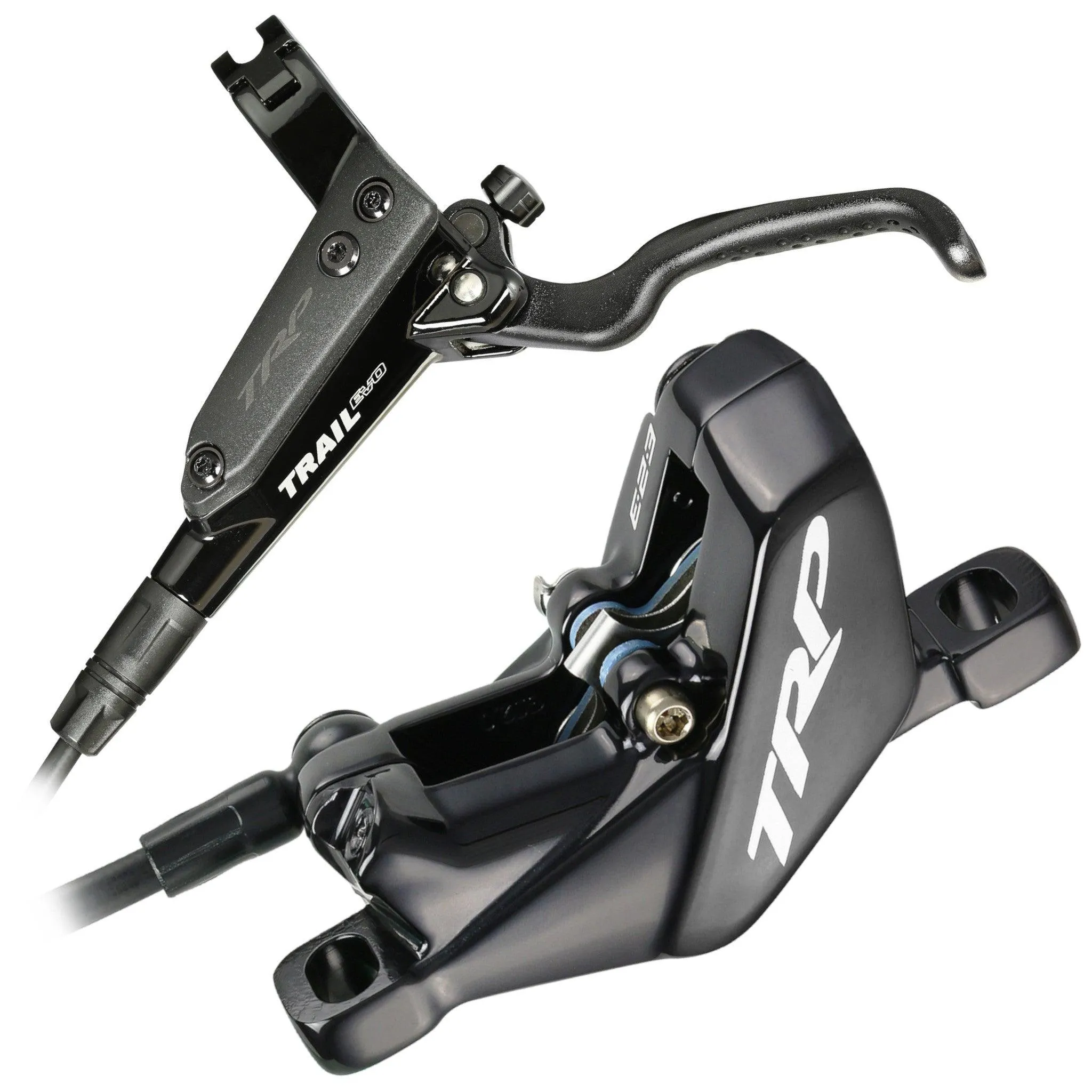

Brake Set Includes:

- 1 Qty Brake Lever (front or rear as specified)
- 1 Qty Caliper
- Brake hose 1900mm (not installed)
- Brake Pads: Resin
- All fitting needed for install

*Mineral oil not included

Details:

• Model: HD-M843
• System Weight: 307g (Front without rotor and adapter)

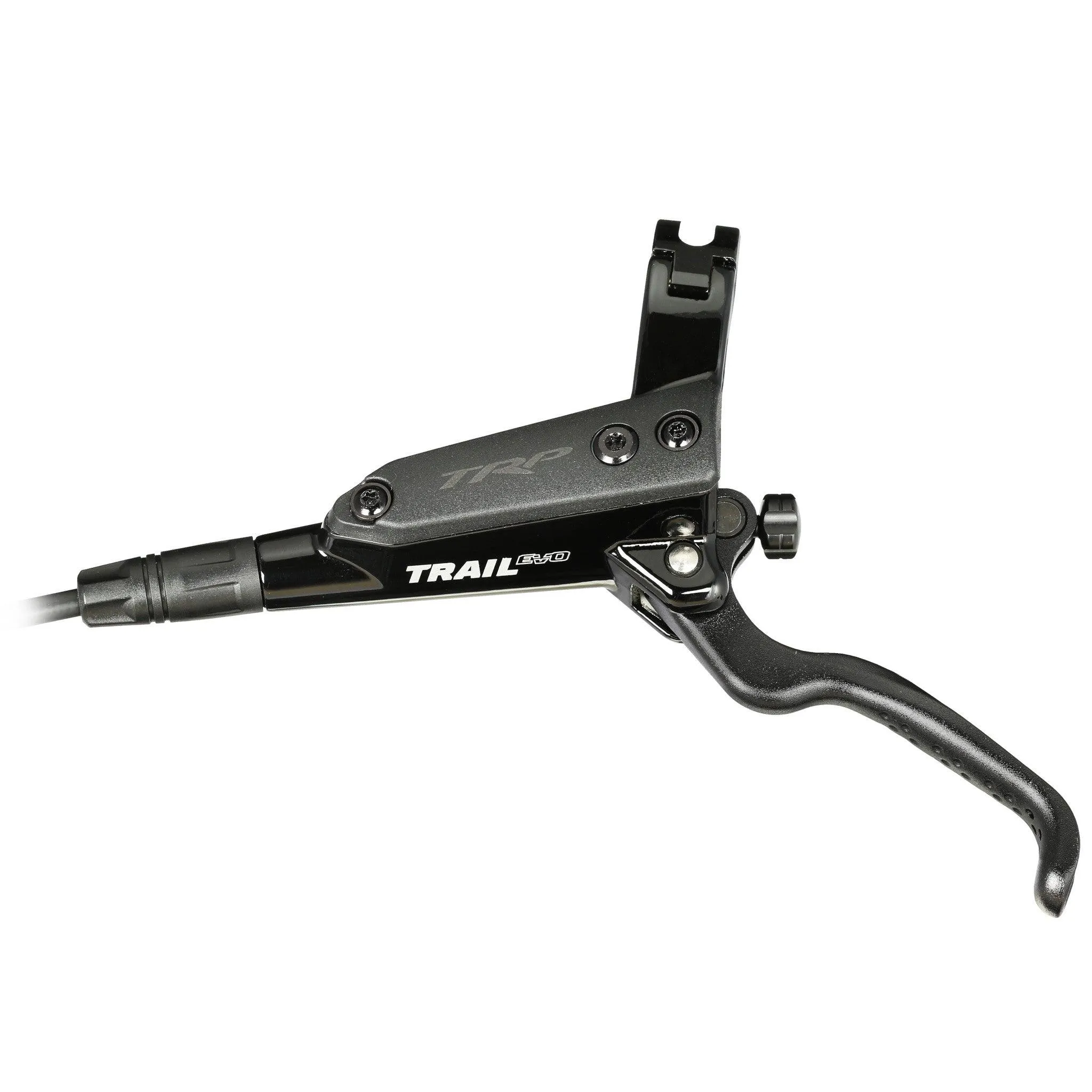

TRP Trail EVO Disc Brake Lever

• Ergonomic lever blade
• 10mm internal brake lever piston
• Adjustable lever reach
• I-Spec II compatible
• I-Spec EV adapter option
• TRP and MMX shifter adapter available
• Hinged lever clamp
• Matte black finish

TRP Trail EVO Disc Brake Lever

• Optimized hydraulic flow
• Stainless steel pistons
• 5mm brake hose
• Made for 2.3mm thick rotors
• Top loading pad design
• New resin brake pad
• Banjo hose connection
• Newly formulated mineral oil
• Matte black finish

Compatibility:

• Rotors: TRP 2.3mm thick rotors
